ANNKE 5MP POE IP Camera Indoor Outdoor Surveillance With Audio
ANNKE 5MP POE IP Camera Indoor Outdoor Surveillance With Audio
Couldn't load pickup availability

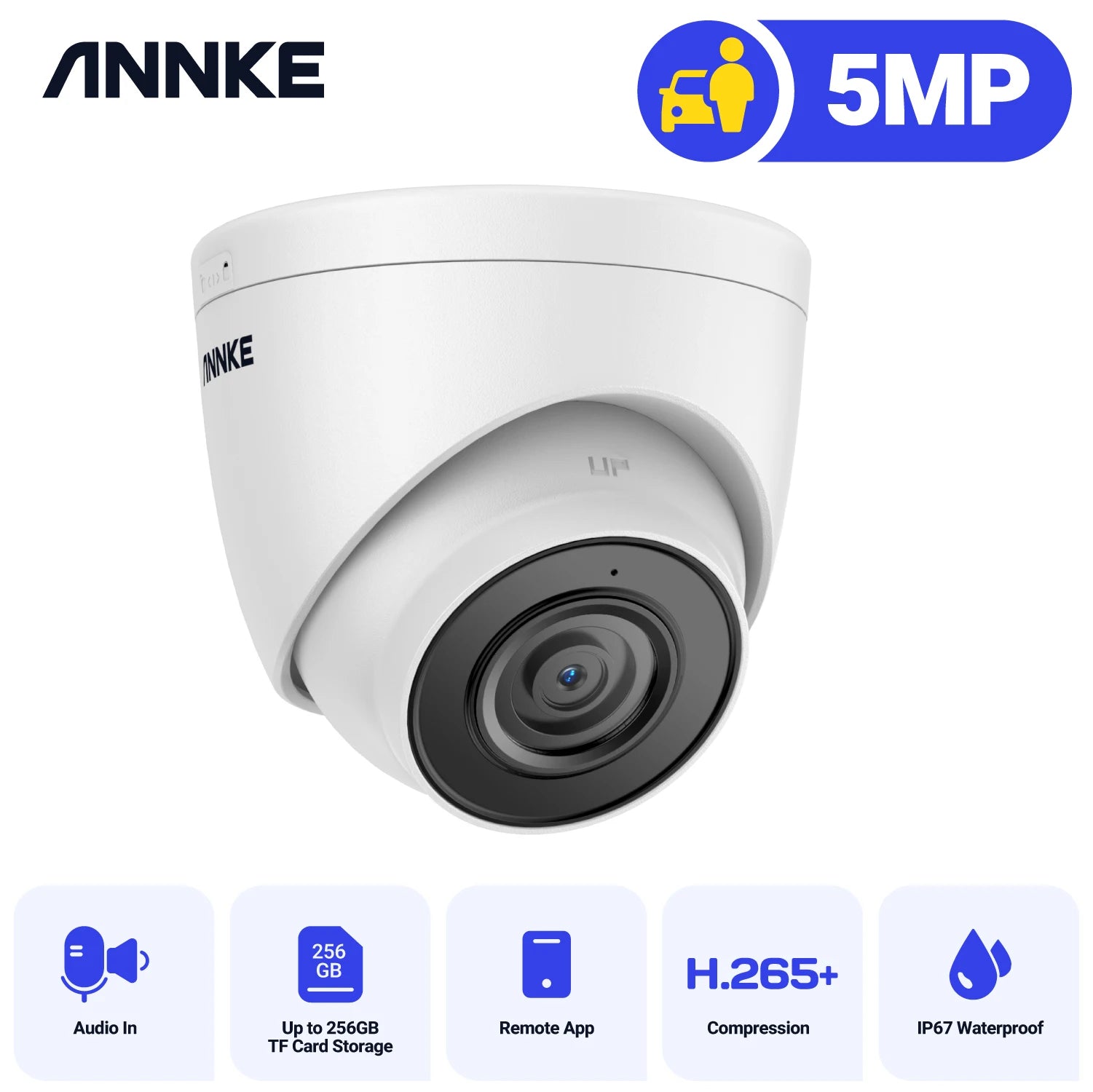

Experience sharp, versatile surveillance with the ANNKE 5MP PoE IP Camera for indoor and outdoor use, delivering audio capture and 3K (3072x1728) detail.
- 3K 5MP image sensor with a 2.8mm wide-angle lens delivers a wide 99° horizontal field of view in a 16:9 frame, with 3D DNR and 120 dB WDR for crisp daytime and nighttime images.
- Night vision reaches up to 30 m (100 ft) with EXIR 2.0, and a built-in microphone records audio along with video.
- Rugged IP67 housing supports indoor/outdoor use; powered by PoE (802.3af) or DC12V, with a microSD/SDHC/SDXC slot up to 256 GB for local storage.
- Advanced analytics and efficient streaming: Motion Detection 2.0 with Human & Vehicle Detection, plus H.265+/H.265/H.264+/H.264 encoding for lower bandwidth.
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm/2.8mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
2.8MM: Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
|
Number of Infrared LEDs |
2 pcs |
|
Night Vision Distance |
Up to 100 ft/30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
|
ONVIF |
Support 4MM Lens |
|
API |
2.8MM Lens:Open Network Video Interface |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection,video tampering alarm, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Dimension (L X W X H) |
Ø 110 × 100.8 mm (Ø 4.3" × 4.0") |
|
Weight |
0.6 lb./270 g |
|
