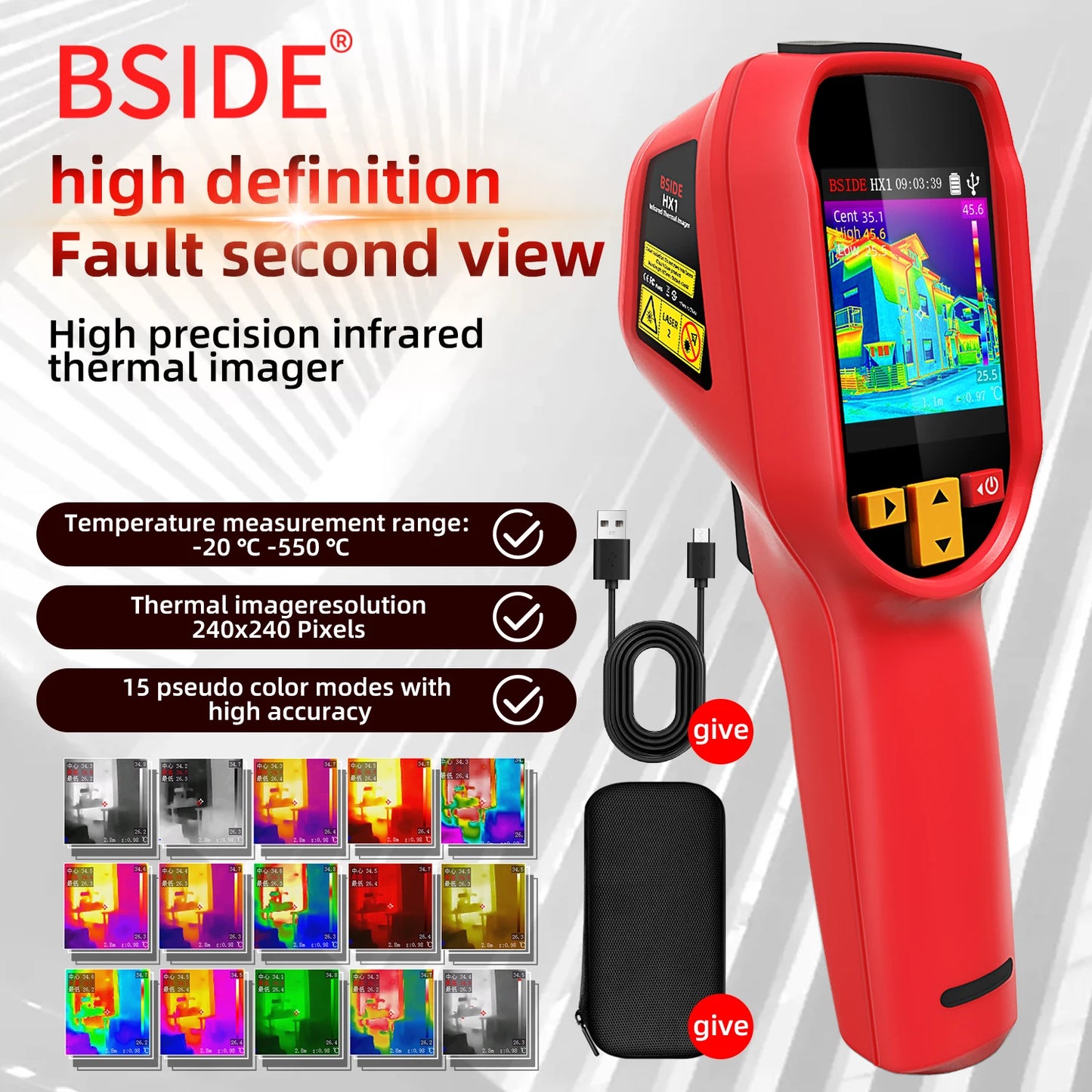

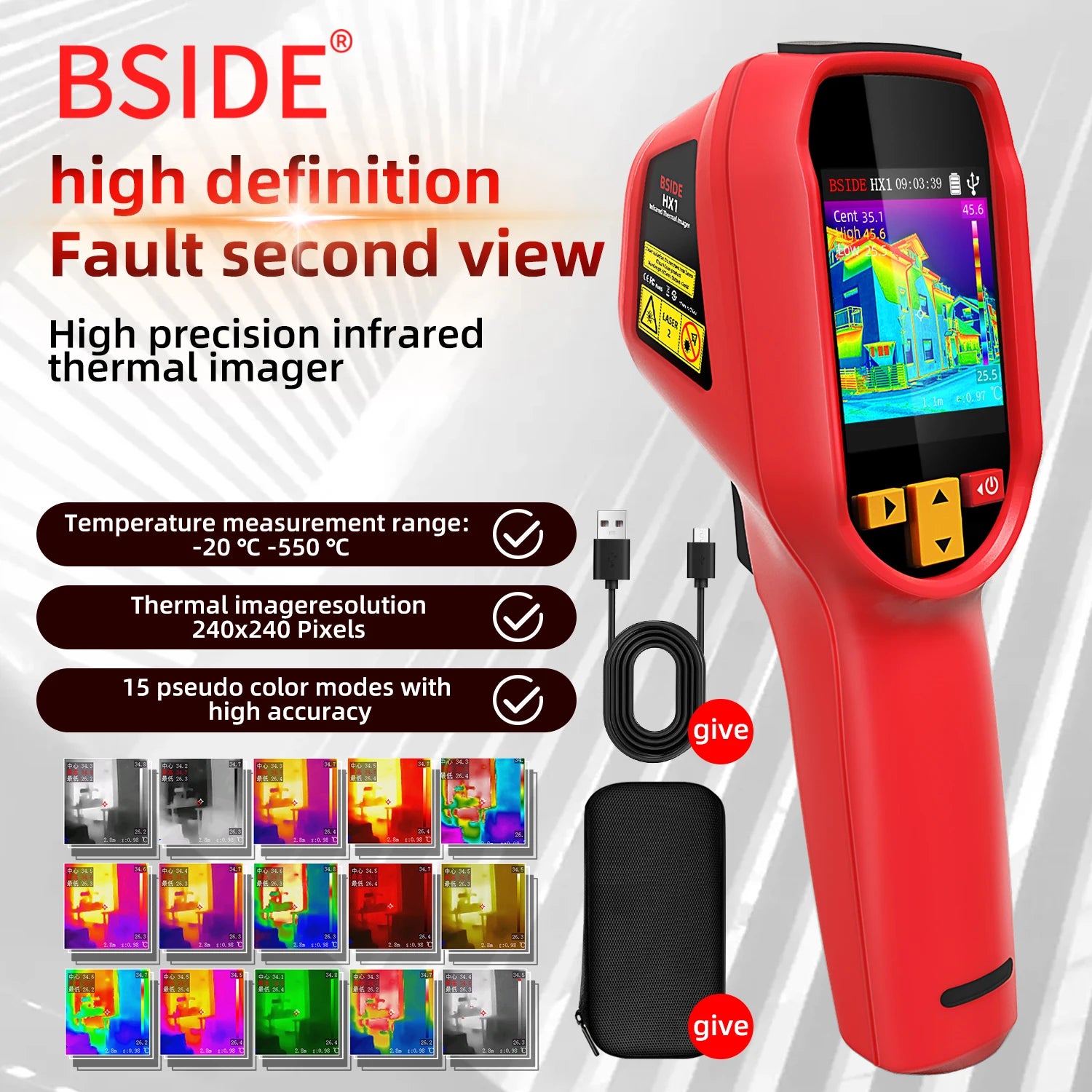

BSIDE Handheld Thermal Imaging Camera HX1 240x240 For PCB Repair
BSIDE Handheld Thermal Imaging Camera HX1 240x240 For PCB Repair
Couldn't load pickup availability

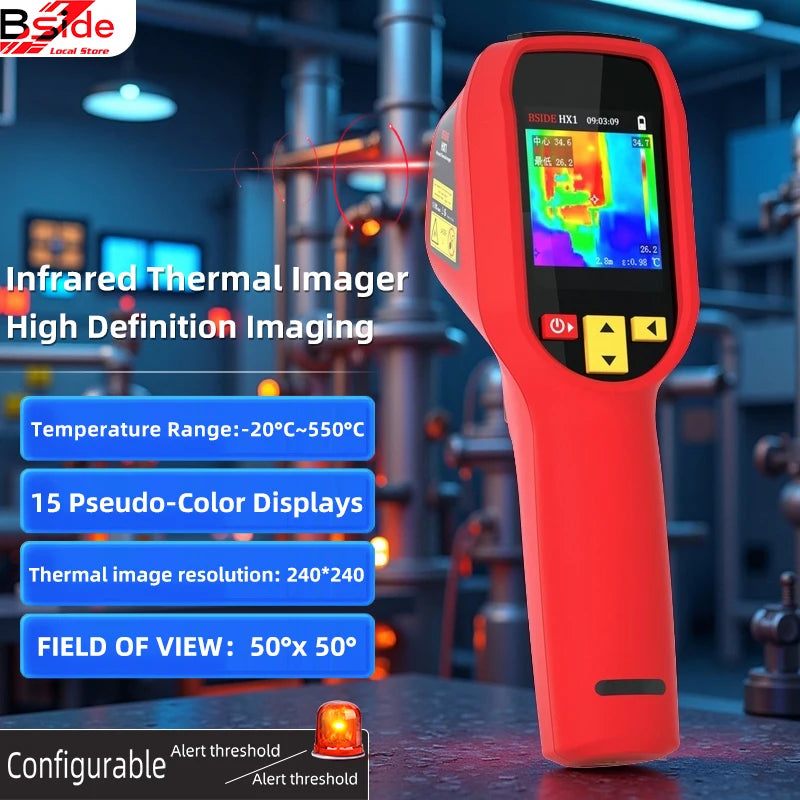

You can effortlessly diagnose PCB heat issues anywhere with the BSIDE HX1 handheld thermal camera.
- Capture precise thermal images at 240×240 with a -20°C to 550°C range, 25 Hz frame rate, and NETD ≤60 mK for fine temperature details you can trust in soldering or component testing.

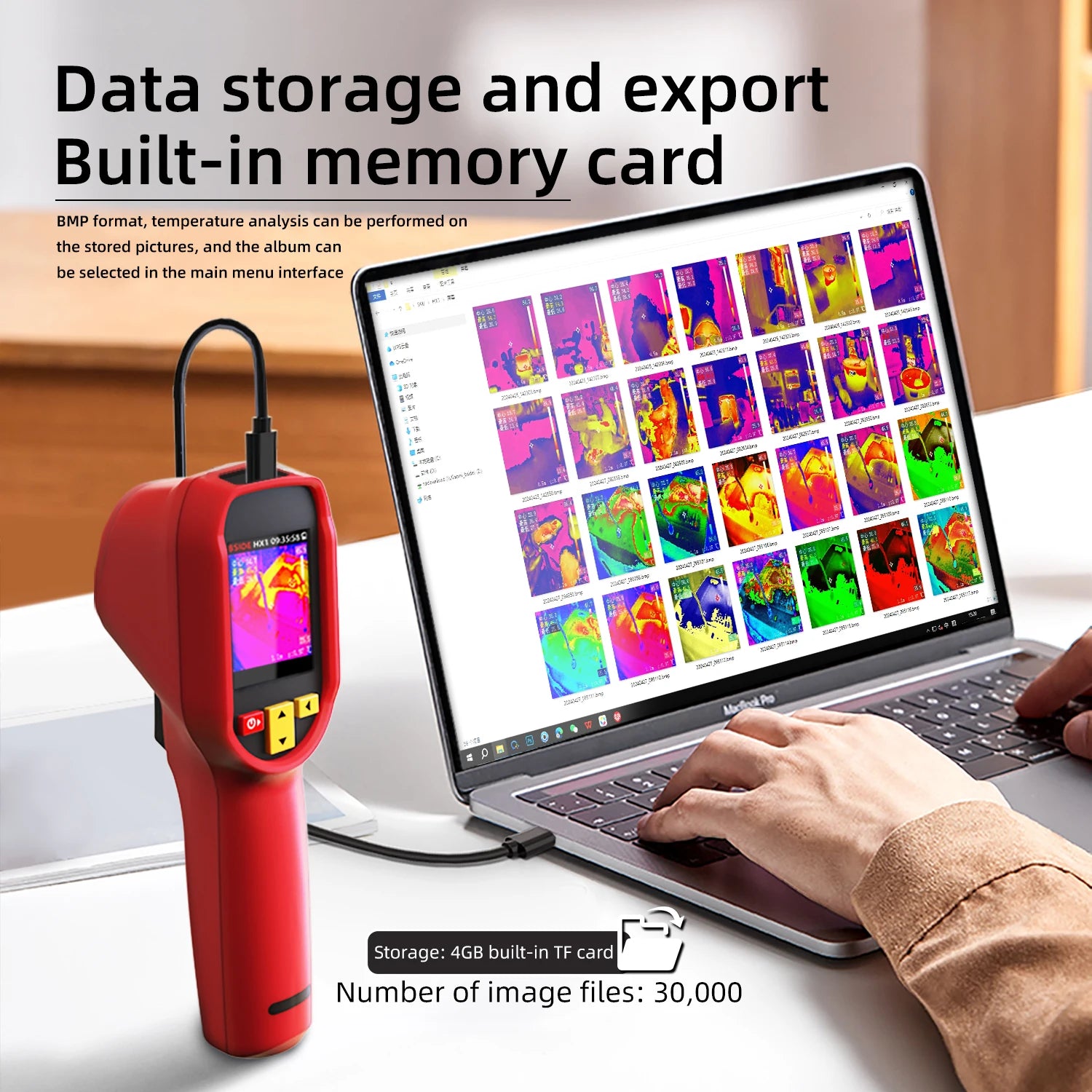

- Analyze and document: 4GB built-in storage, data export, and temperature analysis of stored pictures; adjustable emissivity 0.01–1 and 15 color palettes to highlight hotspots.
- User-friendly design: 2.4" TFT LCD, auto focus, laser indicator/LED illumination for precise targeting, tripod mount, IP54 protection, 1.5 m drop resistance.
- Extended fieldwork capability: rechargeable 2500 mAh Li battery lasting >7 hours; USB-C power, supports multiple languages, and optional firmware language packs.
Performance Indicators | |
Sensor type |
Vanadium oxide (VOx) microcalorimeter |
Response Band |
8~14pm |
Thermal image resolution |
240x240 Pixels |
Noise equivalent temperature difference(NETD) |
≤60 mK(@25°C,F#1.0) |

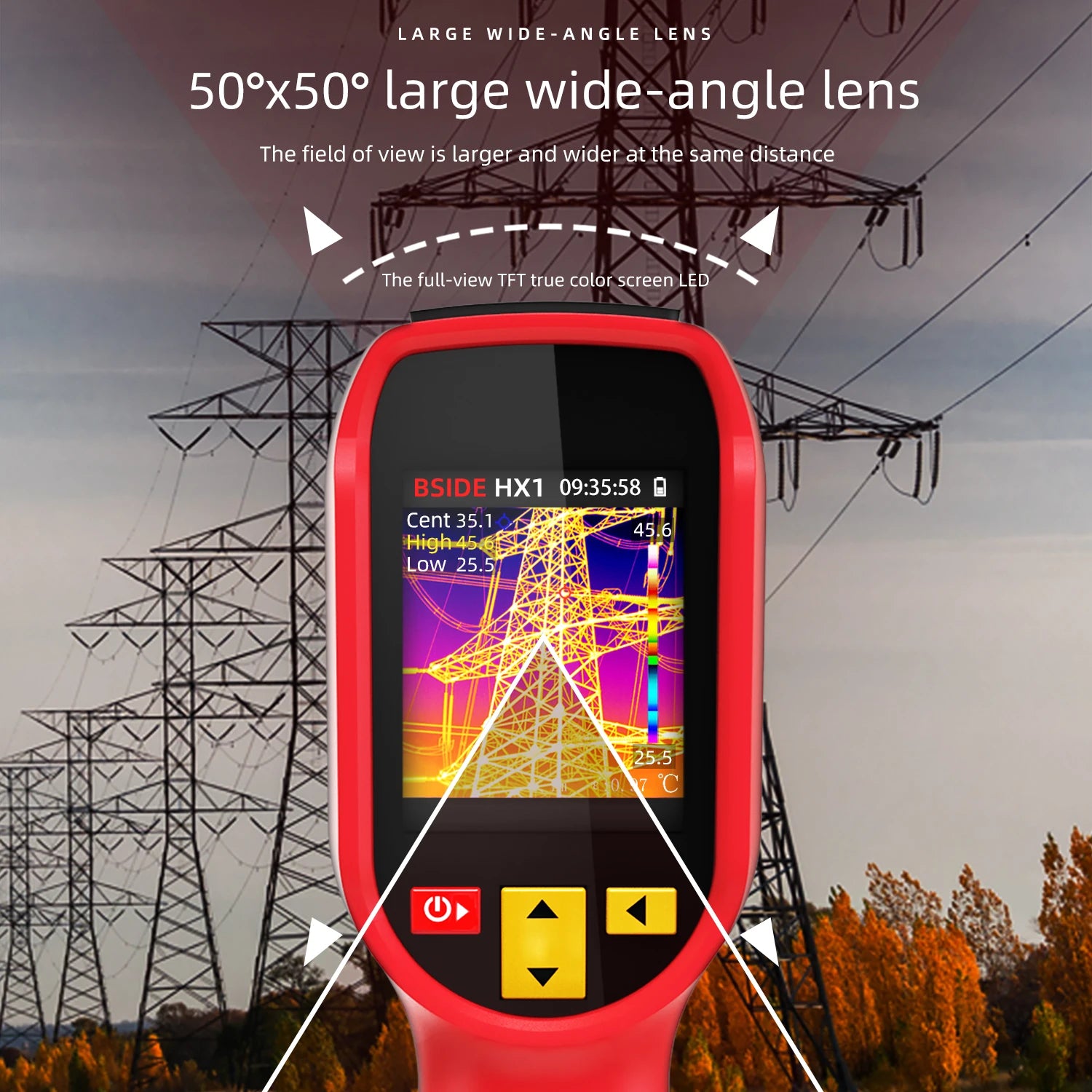

Angle of view(FOV) |
50.0°(H)×50°(V)/72.1°(D) |
Spatial resolution (IFOV) |
8.89 mrad |
Frame rate |
25Hz |
The focal length of the |
1.35 mm |
Temperature measuring focal length |
0.3m~3m Adjustable |
Temperature range |
-20℃~550℃ |
Accuracy of temperature measurement |
±2℃ or±2%of the reading |
Unit of temperature measurement |
Celsius,Fahrenheit,Kelvin |
Temperature resolution |
0.1℃ |
Emissivity |
0.01~1.00 Adjustable |
Temperature measurement shows |
Center point temperature measurement, |
Swatches |
White Hot,Black hot,Fusion 1,Rainbow, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, |
Display screen |
2.4 inches TFT LCD |
Display resolution |
320×240 |
Key |
Power Key,up key,Down Key, |
LaserPointer |
Yes |

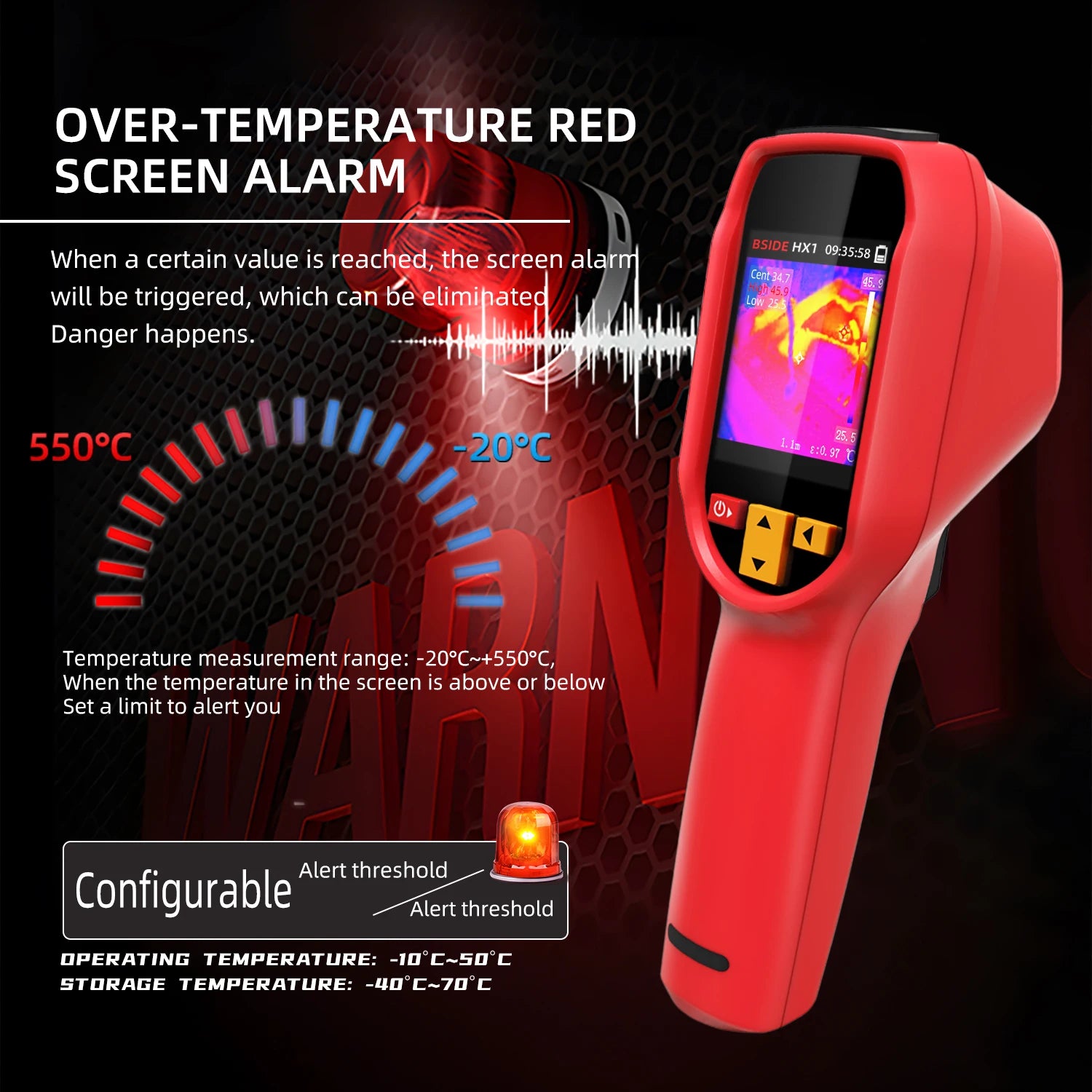

Temperature Alarm |
Screen font color alarm |
Image storage |
Built-in memory card |
Number of image files |
30000 |
Image format |
BMP |
Shock/vibration |
GB/T 2423.5-2019;GB/T2423.10-2008 |
Electromagnetic compatibility(EMC) |
GB/T17799.2,GB17799.3-2012 |
Protection level |
IP54 |
Installation mode |
Tripod mount UNC-20 |
Focus mode |
Auto focusing |
Hardware interface |
Type-C USB |
Battery type |
Rechargeable lithium battery |
The working hours of the battery |
>7h@25℃ |
Charging time |
<3h@25°℃ |
Charging |
5V/2A |
Boot speed |
~8 seconds |
Automatic shutdown |
Diable(default) |
Operating temperature |
-10°C~50°C |
Storage temperature |
-40°C~70°℃ |
Working humidity |
≤85%RH(Non-condensing) |
Drop |
1.5m |
Product dimensions |
193.4*59.4*77.4mm |
Product weight |
277g |
